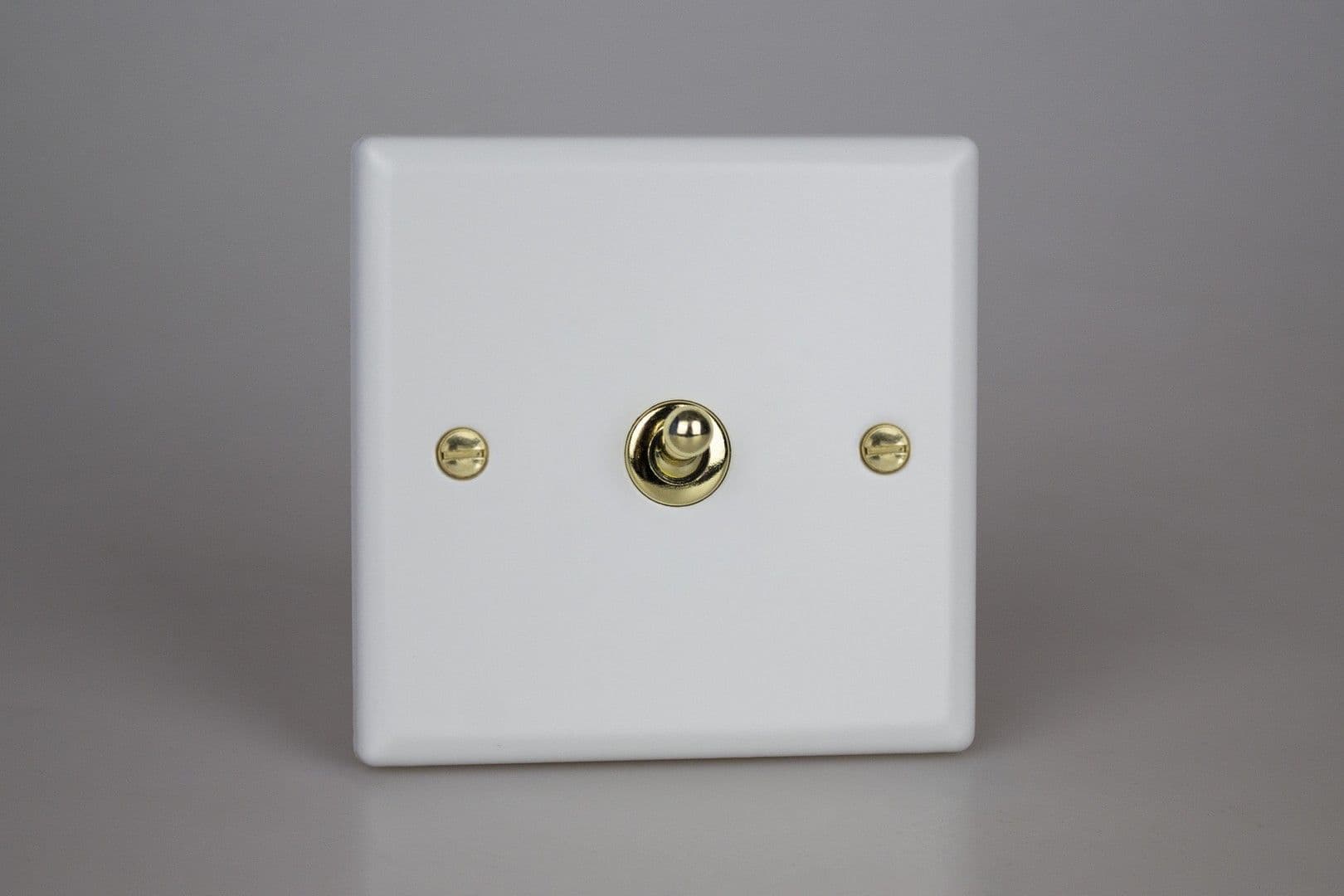

Product Description: 1-Gang 10A 1- or 2-Way Toggle Switch

Range: Vogue

Finish: Matt White

Product Category: 2-Way Toggle Switch

Insert/Knob Colour: Polished Brass

Barcode: 5021575122374

Dimensions: 91x91x36mm

Faceplate Depth: 8mm

Product Weight: 130g

Fixing Centres: 60.3mm

Depth from Mounting Face: 11.9mm

Recommended Back Box Depth: 16mm

Operating Voltage: 220/250V AC

Maximum Load Rating: 10A

Maximum Current Rating: 10A

Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Product Features

1- or 2-way switching
Suitable for controlling both mains and low voltage lighting
Curved edge faceplate

Intended Applications: Indoor Use Only. Domestic lighting circuits.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85365007
