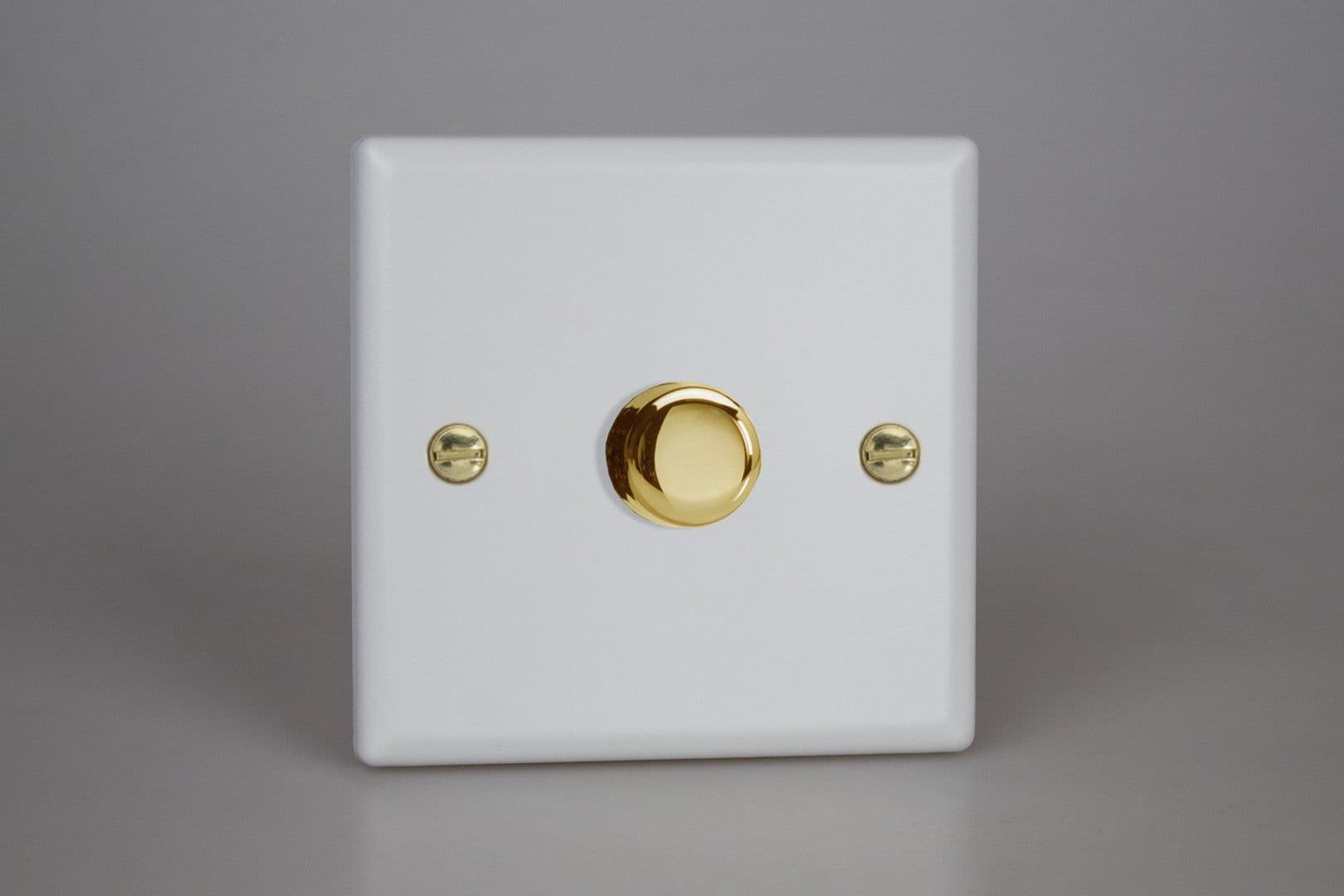

Product Description: 1-Gang 2-Way Push-On/Off Rotary LED Dimmer 1 x 0-120W (1-10 LEDs)
Range: Vogue
Finish: Matt White
Product Category: V-Pro Dimmer
Insert/Knob Colour: Polished Brass
Barcode: 5021575121834
Dimensions: 91x91x47mm
Faceplate Depth: 8mm
Product Weight: 160g
Fixing Centres: 60.3mm
Depth from Mounting Face: 18.1mm
Recommended Back Box Depth: 25mm
Operating Voltage: 220/250V AC
Maximum Load Rating: LED; 120W (Max. 10 lamps)
Maximum Current Rating: 1.3A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
V-Pro intelligent dimming technology
Soft start feature and intelligent overload protection
Adjustable minimum brightness setting and choice of driving modes
Varilight Vogue Collection
Varilight Urban: Inspirational finishes for stylish spaces
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers, TRIAC dimmable loads or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365007
