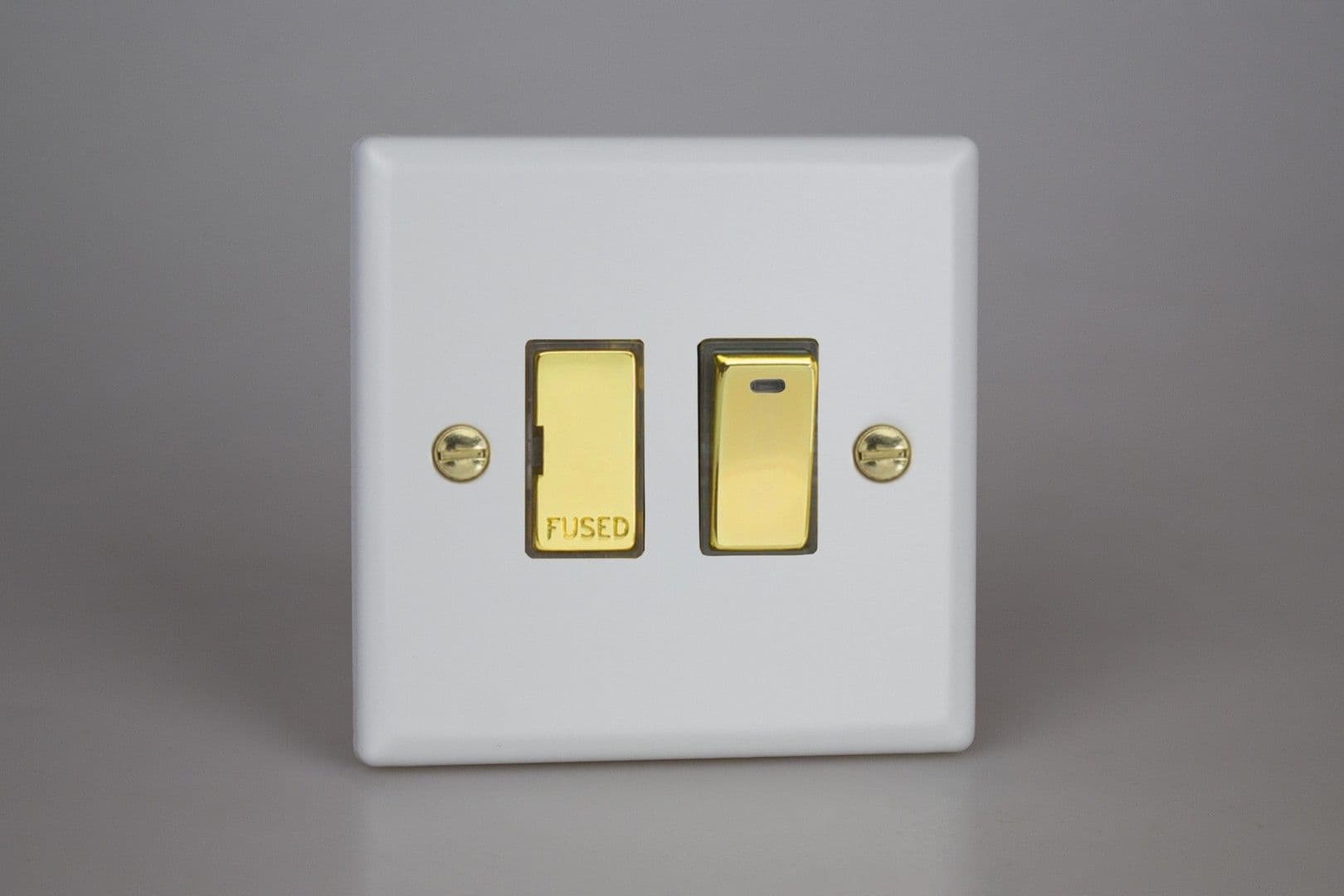

Product Description: 13A Switched Fused Spur + Neon with Metal Inserts

Range: Vogue

Finish: Matt White

Product Category: Fused Spur

Insert/Knob Colour: Polished Brass

Barcode: 5021575122169

Dimensions: 91x91x30mm

Faceplate Depth: 8mm

Product Weight: 140g

Fixing Centres: 60.3mm

Depth from Mounting Face: 16.7mm

Recommended Back Box Depth: 25mm

Operating Voltage: 220/250V AC

Maximum Load Rating: Refer to Fuse Value

Maximum Current Rating: 13A

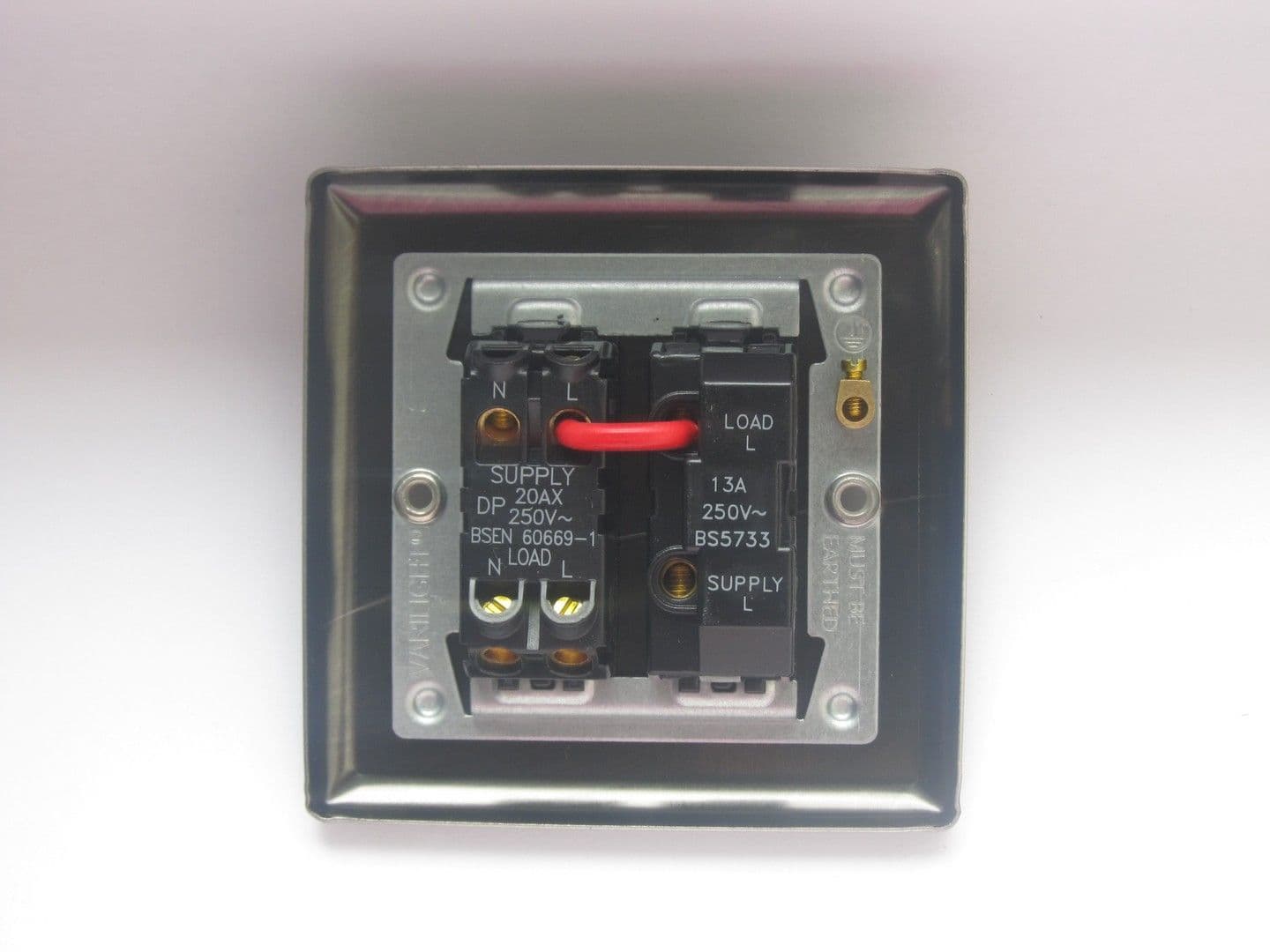

Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Product Features

Double pole switching
Neon indicator light
Holds standard 25.4x6.4mm fuse
Replaceable 13A fuse included
Varilight Vogue Collection

Intended Applications: Indoor Use Only. Domestic power supply.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-4

Commodity Code: 85365007
