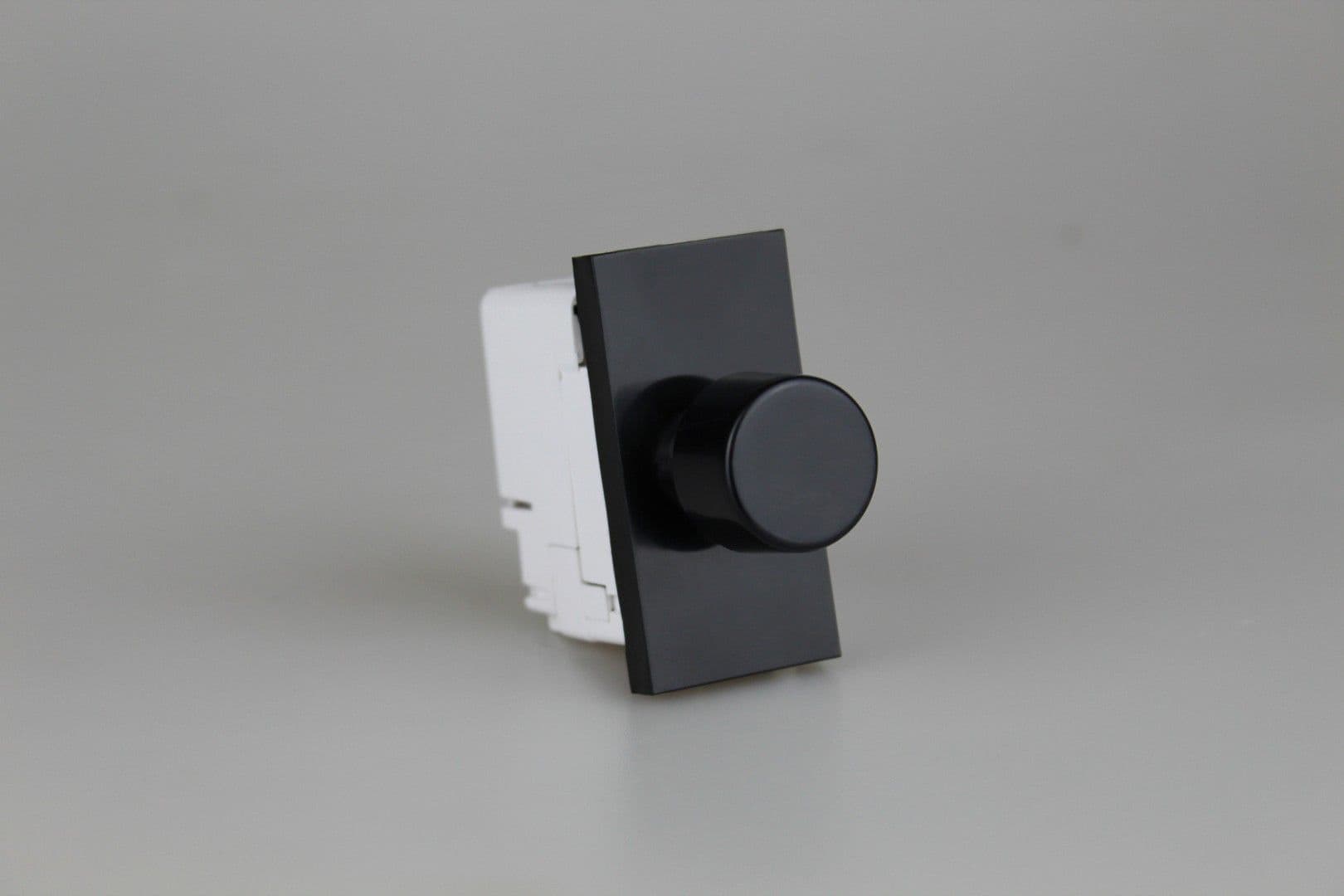

Product Description: 2-Way Push-On/Off Rotary LED Dimmer 0-100W (max 10 LEDs)

Range: DataGrid

Finish: Black

Product Category: V-Com Dimmer

Insert/Knob Colour: Black Knob

Barcode: 5021575003116

Dimensions: 50x25mm

Product Weight: 50g

Fixing Centres: N/A

Depth from Mounting Face:

Recommended Back Box Depth:

Operating Voltage: 220/250V AC

Maximum Load Rating: LED; 100W (Max. 10 LEDs)

Maximum Current Rating: 0.9A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Product Features

V-Com intelligent TRIAC leading edge dimming technology
Soft start feature and intelligent overload protection
Adjustable minimum brightness setting and choice of driving modes
Create your own switch/data combinations

Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365007
