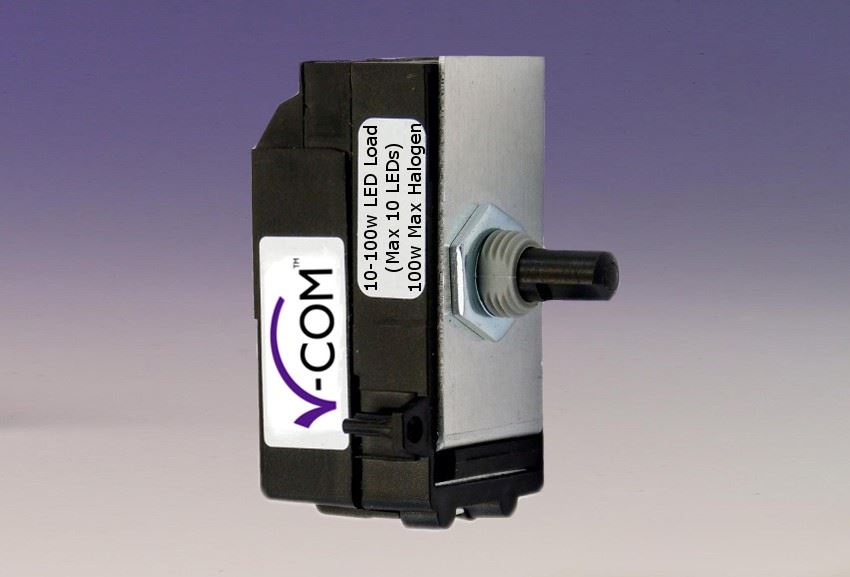

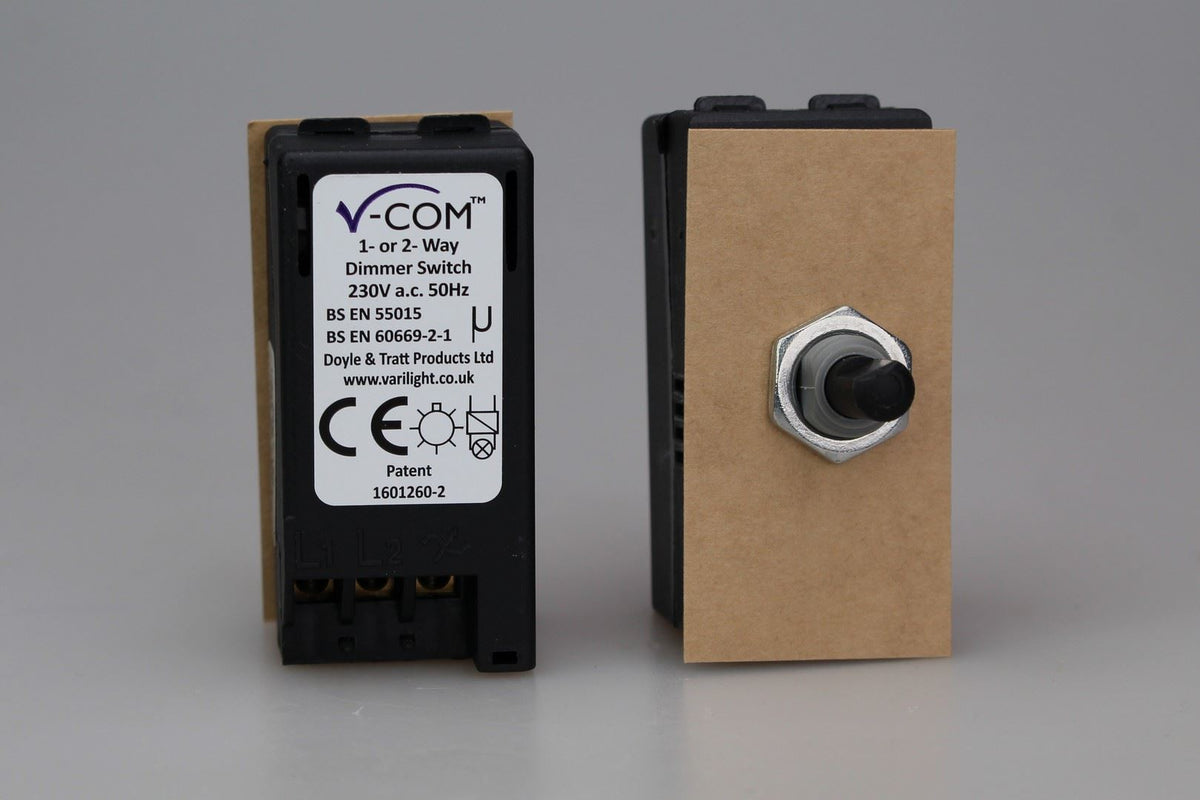

Varilight 2-Way V-Com Push On/Off Rotary LED Dimmer 0-100W (max 10 LEDs) in Module Matrix w/

Product Description: 2-Way Push-On/Off Rotary LED Dimmer 0-100W (max 10 LEDs)

Range: Module
Product Category: V-Com Module
Barcode: 5021575003970

Dimensions: 52x26x42mm (Click here to see full dimensions)
Product Weight: 50g
Fixing Centres: N/A
Depth from Mounting Face:
Recommended Back Box Depth: N/A
Operating Voltage: 220/250V AC
Maximum Load Rating: LED; 100W (Max. 10 LEDs)
Maximum Current Rating: 0.4A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Product Features

Can be used to replace dimmer modules in existing faceplates or in the Matrix dimmer grid system
V-Com intelligent TRIAC leading edge dimming technology
Soft start feature and intelligent overload protection
Adjustable minimum brightness setting and choice of driving modes to optimise the dimming performance of a given LED lighting load

Intended Applications: Indoor Use Only. Commercial & domestic lighting circuits including many dimmable LEDS.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365007
