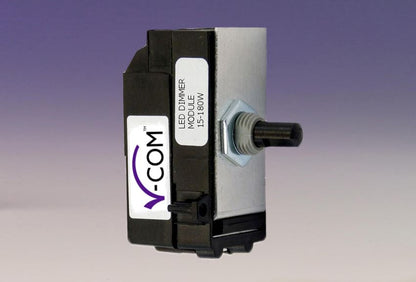

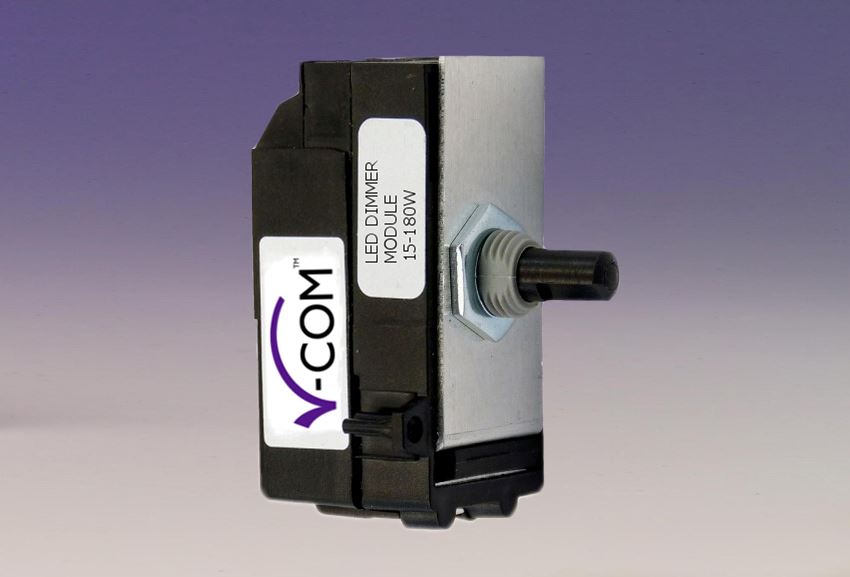

Varilight 2-Way V-Com Push On/Off Rotary LED Dimmer 15-180W (Max 20 LEDs) Replacement Module Kit in Module Matrix w/

Product Description: 2-Way V-Com Push On/Off Rotary LED Dimmer 15-180W Replacement Module Kit

Range: Replacement Module

Product Category: LED Dimmers

Barcode: 5021575193336

Dimensions: 53x28x42mm

Net Weight: 48g

Gross Weight: 50g

Fixing Centres: N/A

Depth from Mounting Face:

Recommended Back Box Depth: N/A

Operating Voltage: 230v 50Hz

Maximum Load Rating: LED: 180W

Maximum Current Rating: 0.78A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365005

Product Features

• V-Com intelligent leading edge (triac) LED dimmer module, replaces the module in an existing dimmer or completes a Matrix kit
• Dims 15-180W of lighting with no maximum number of lamps
• DRIVE function, adjustable minimum and maximum brightness and a choice of driving modes
• Soft start extends lamp life, with intelligent overload protection
• Push on/off, rotate to dim
• Fits every Matrix faceplate kit and replaces existing VARILIGHT dimmer modules
• Matrix module size S, 53x28x42mm

Replacement Module Collection
VARILIGHT replacement dimmer modules fit our Matrix dimmer plate kits and can also be used to replace or upgrade the modules in existing VARILIGHT dimmer faceplates, so you can move to the latest LED dimming technology without changing your plates.
