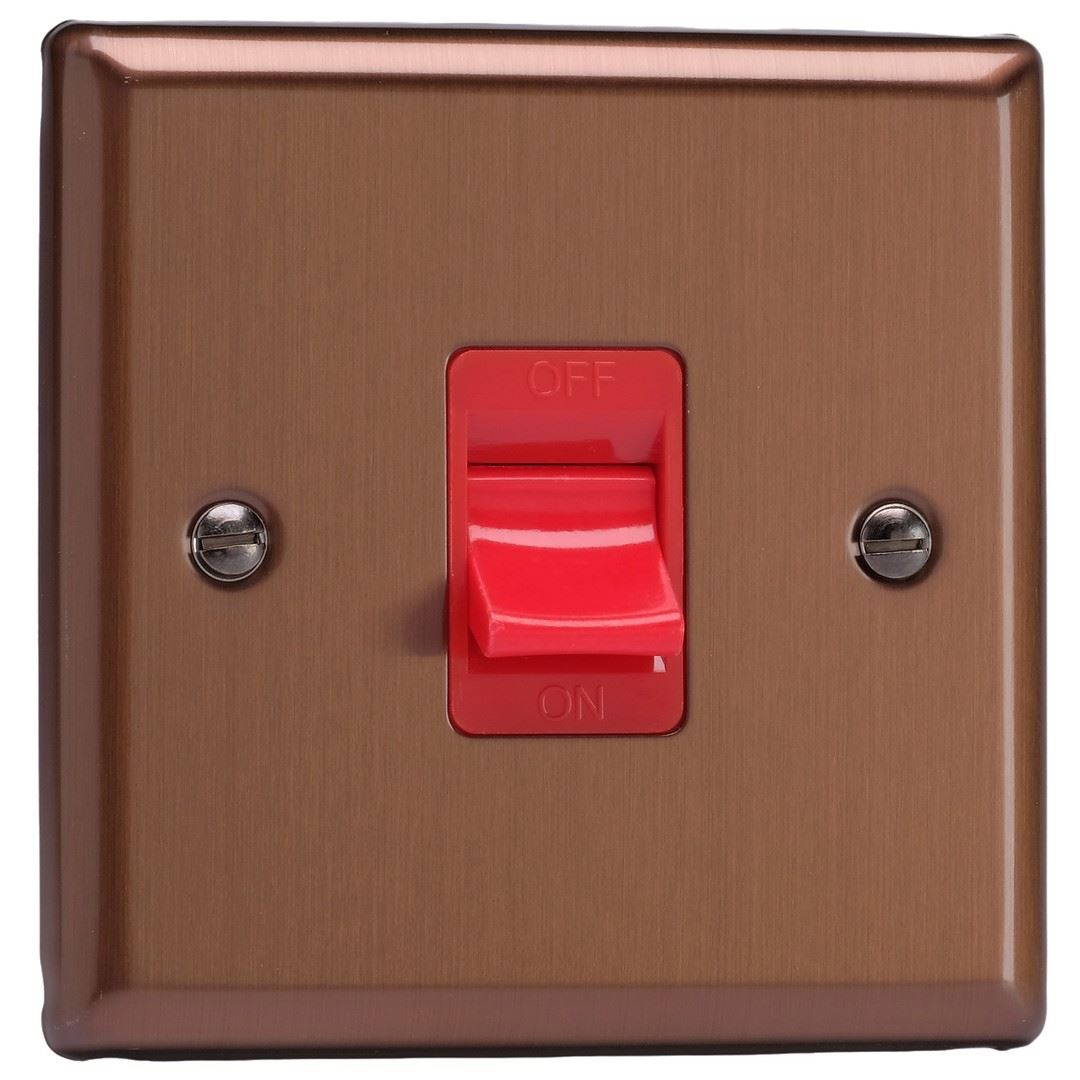

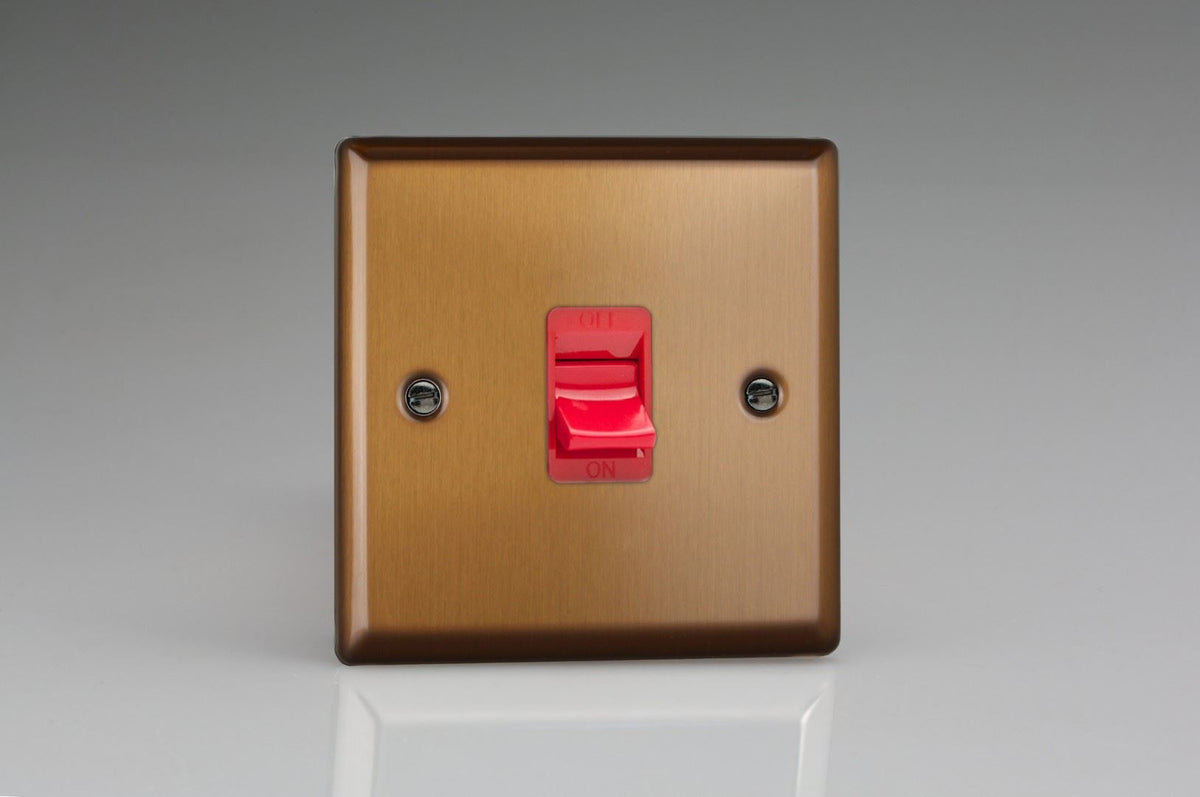

Varilight 45A Cooker Switch (Single Plate, Red Rocker) in Urban Brushed Bronze w/ Red Insert

Product Information

Dimmer type/Insert colour: Red
Plate Type: Urban
Finish: Brushed Bronze
Insert/Rocker Colour (if applicable): Red Insert
EAN code: 5021575952209
Dimensions: 91x91x35mm
Faceplate Depth: 8mm
Mounting Depth: 19.4mm
Required Back Box Depth: 35mm
No. of Gangs: 1
Grid Spaces: 0
Cooker Switch
45A Single Plate
Fixing Hole Centres: 60.3mm

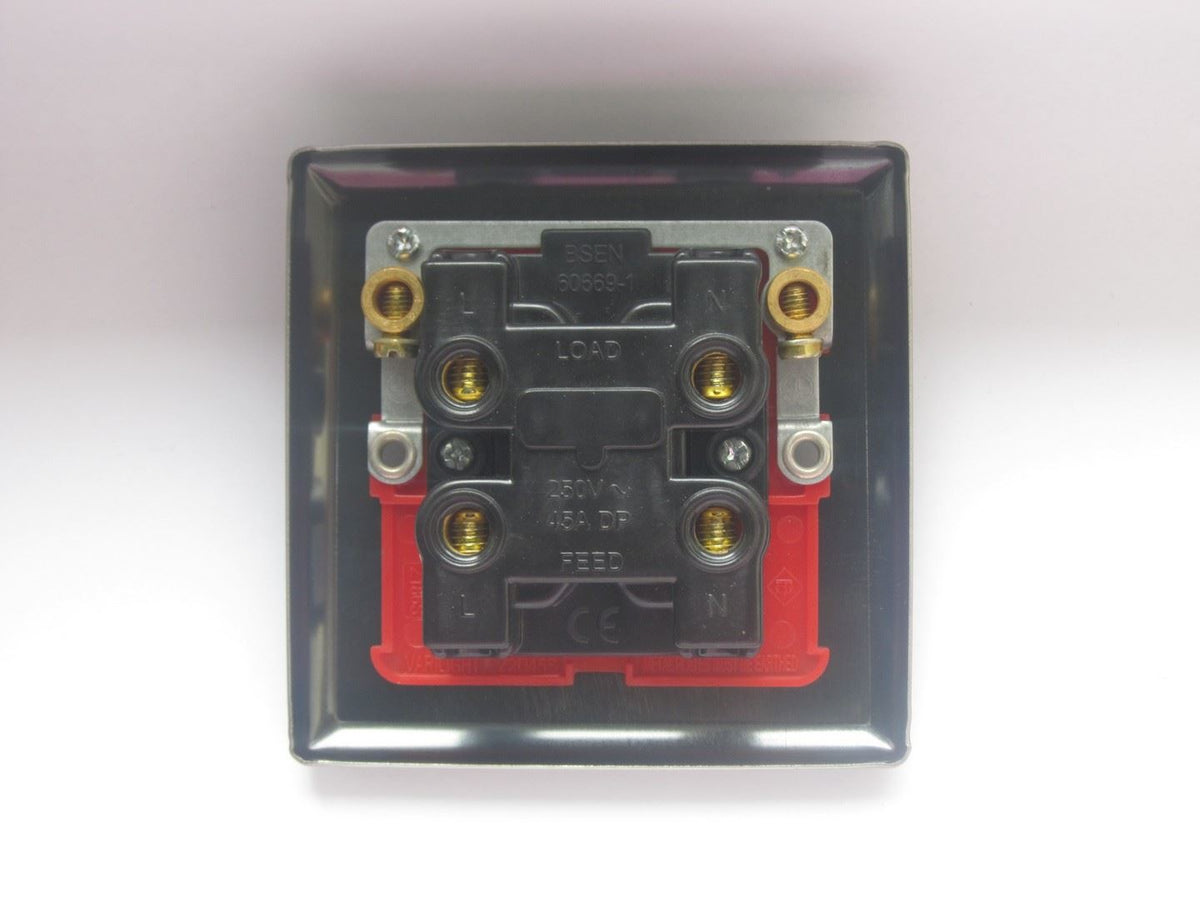

Terminal Capacity (Live): 2 x 10mm²
Terminal Diameter (Live): 6.4mm
Terminal Capacity (Neutral): 2 x 10mm²
Terminal Capacity (Earth): 2 x 10mm²
Terminal Diameter (Earth): 5.4mm
Maximum Current Rating: 45A
Switched Poles: Double
Voltage: 220/250V AC
Maximum Load: Cooker Switch; 45A
Contact Gap Minimum: 3mm
Applicable Saftey Certification: BS EN 60669-1
Intended Applications: Indoor Use Only
Domestic power supply.
Application Advice: N/A
N/A
Earthed: Product Must Be Earthed

Features

• Double pole switching
• Single sized plate
• Bevelled edge faceplate
• Varilight Urban: Inspirational finishes for stylish spaces

N/A
Made in: UK
Commodity Code: 85366990
Max Wattage for Max Current: 0
Guarantee Years: 10
